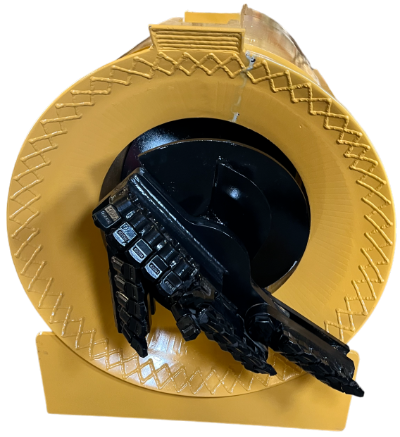

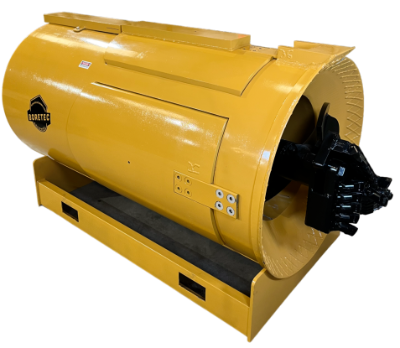

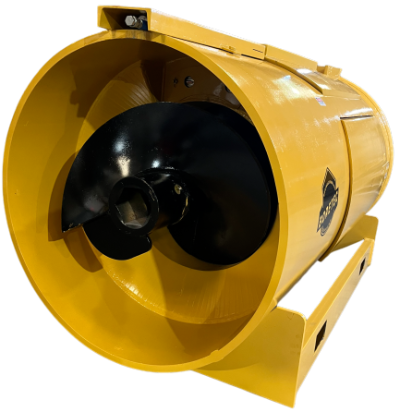

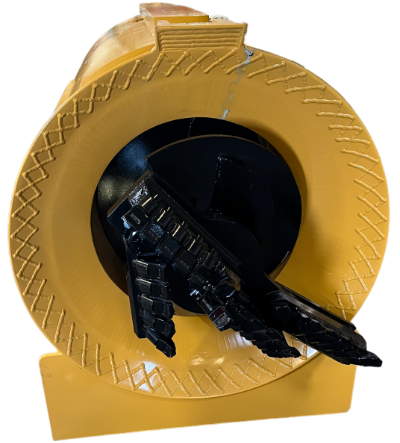

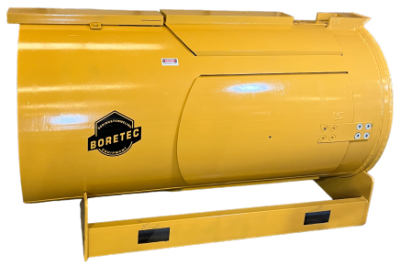

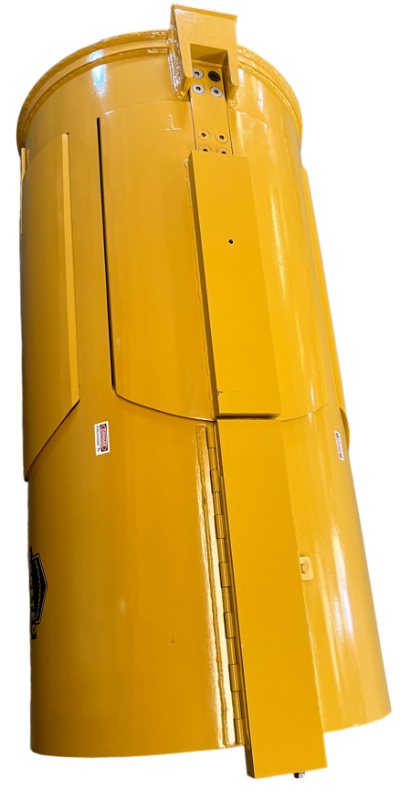

24-60" OTS Steering Head
Specs:
- Single-pass system
- 4-flap steering system
- Water level and LEDs show elevation and line
- Electronic steering (grade, roll and line) available
- Control station required
- 4 inch hex connection
- Auger and carbide tooth cutting head included
- XTRM bit available
Suggested Augers:
- 24" OTS stearing head uses 16" or 18" augers
- 30" OTS stearing head uses 16" to 20" augers
- 36" OTS stearing head uses 24" to 30" augers
- 42" OTS stearing head uses 30" to 36" augers
- 48" OTS stearing head uses 30" to 36" augers
- 54" OTS stearing head uses 30" to 42" augers
- 60" OTS stearing head uses 30" to 48" augers
Description:
Introducing the revolutionary 24-48" OTS Steering Head, a game-changer in directional drilling technology. This advanced single-pass system is designed for efficiency and precision in your drilling projects.
Reviews:
-
We enjoy having finished an installation and the job superintendent calls the engineers to the bore to show them the accuracy The OTS routinely accomplishes.Jim Robinson
- Write a review.
Press:
-
Executing Precision Steering with Auger Boring
“However, on this particular crossing, we contended with soft soil conditions and groundwater. It’s a lot for a crew to think through, but in the end, we pushed a 24-in. diameter steel casing 400 ft under I-95 in just over one-and-a-half days.” -
Horizontal Directional Drilling vs. Auger Boring
“While directional drilling is used for everything from small fiberoptic conduit to large oil and gas pipeline installations, once the utility being installed is around the 60.9-cm to 152.4-cm diameter range or larger, auger boring begins to be a viable option,” said Gasmovic. -
Trenchless Employs Latest Auger Boring Tech for Parallel Drainage Project
Under a busy patch of highway between Mead and Loveland, Colo., an auger boring crew for BTrenchless recently completed a drainage project to support the area’s expanding population.
Inventory
Click an item below to create an estimate.
| Part Number | Description | Stock | Price |
|---|
Items normally ship within 2 business days.
All prices are subject to change.
